Birtley CB110 Cavity Wall Standard Duty Lintel
Code:
CB110-C
In stock
/ Each
Standard duty cavity wall lintel manufactured from structural grade steel to EN10025

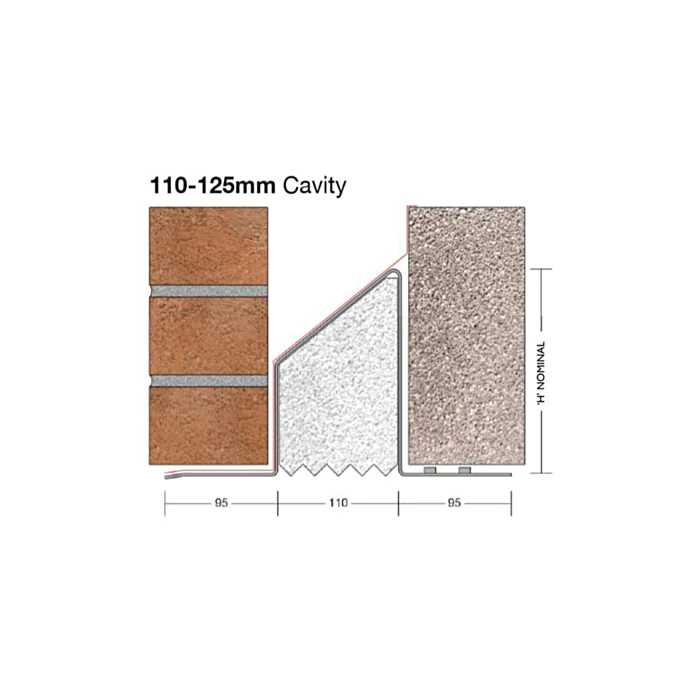

Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Standard duty cavity wall lintel manufactured from structural grade steel to EN10025
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 132 mm |
| Weight: | 7.6 kg Each |
