Birtley CB130 Cavity Wall Standard Duty Lintel
Code:
CB130-C
In stock
/ Each
Standard duty cavity wall lintel manufactured from structural grade steel to EN10025

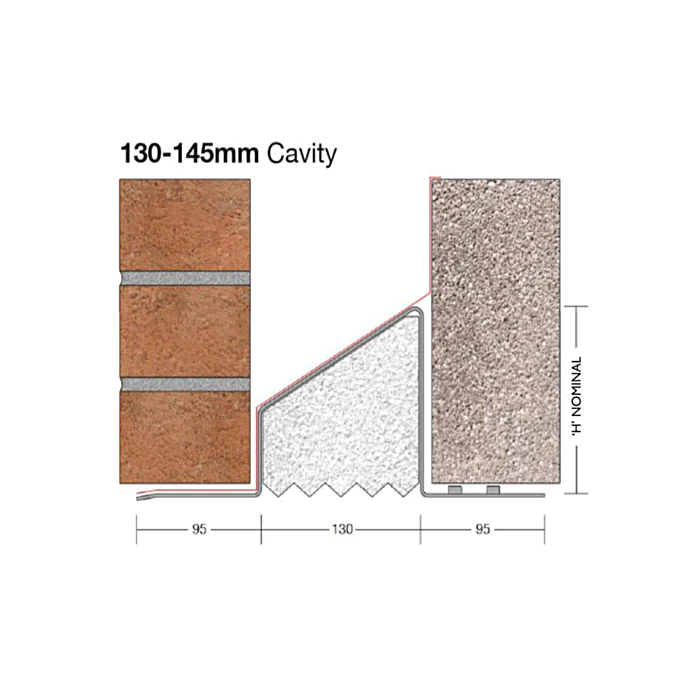

Cavity: 130 mm - 145 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Cavity: 130 mm - 145 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Standard duty cavity wall lintel manufactured from structural grade steel to EN10025
Cavity: 130 mm - 145 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
Cavity: 130 mm - 145 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 20 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 122 mm |
| Weight: | 6.5 kg Each |
