Birtley HD110 Cavity Wall Heavy Duty Lintel
Code:
HD110-C
In stock
/ Each

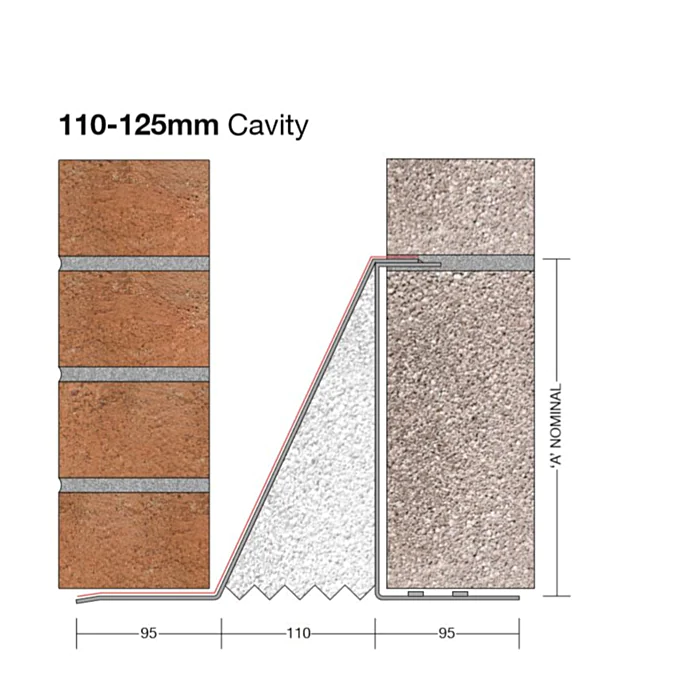

Heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
60 minute fire rating with 2 coat plaster finish
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
60 minute fire rating with 2 coat plaster finish
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
60 minute fire rating with 2 coat plaster finish
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Cavity: 110 mm - 125 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
60 minute fire rating with 2 coat plaster finish
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 231 mm |
| Weight: | 13.2 kg Each |
