Birtley HD50 Cavity Wall Heavy Duty Lintel
Code:
HD50-C
In stock
/ Each
Heavy duty cavity wall lintel manufactured from structural graded steel to EN10025

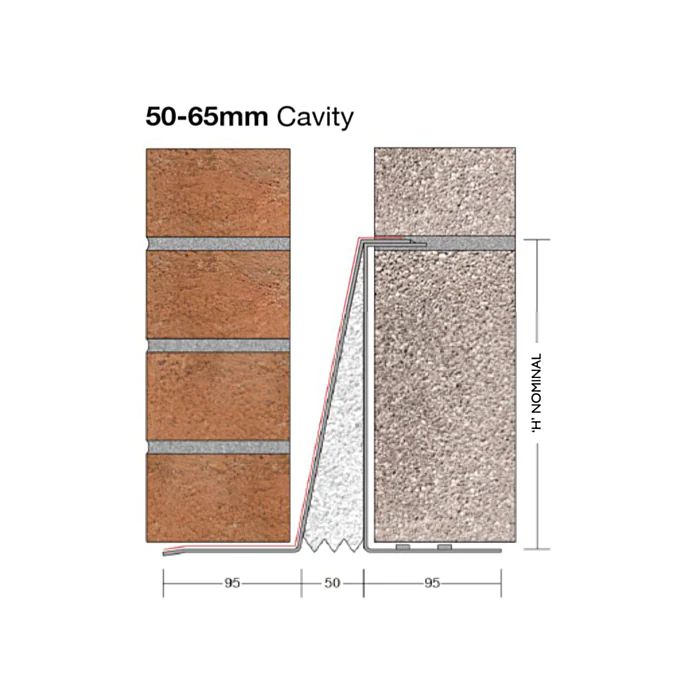

Cavity: 50 mm - 65 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Cavity: 50 mm - 65 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Heavy duty cavity wall lintel manufactured from structural graded steel to EN10025
Cavity: 50 mm - 65 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
Cavity: 50 mm - 65 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Hot dip galvanised
Must have solid, fully jointed blockwork infill to inner leaf
Loading SWL/UDL Value: 70 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 231 mm |
| Weight: | 8.8 kg Each |
