Birtley HDX150 Cavity Wall Extra Heavy Duty Lintel
Code:
HDX150-C
In stock
/ Each
Extra heavy duty cavity wall lintel manufactured from structural graded steel to EN10025

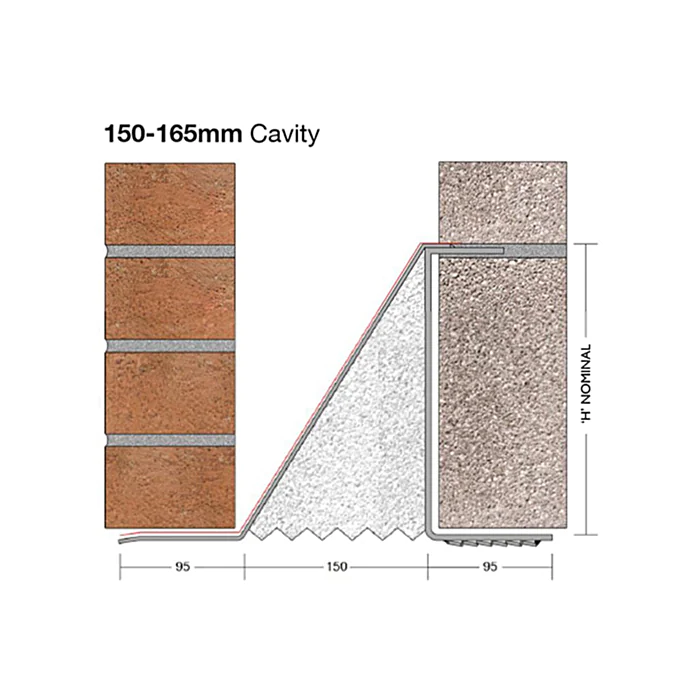

Cavity: 150 mm - 165 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Wide inner lead to suit 125 mm - 140 mm block
Hot dip galvanised
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 100 kN
Cavity: 150 mm - 165 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Wide inner lead to suit 125 mm - 140 mm block
Hot dip galvanised
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 100 kN
Extra heavy duty cavity wall lintel manufactured from structural graded steel to EN10025
Cavity: 150 mm - 165 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Wide inner lead to suit 125 mm - 140 mm block
Hot dip galvanised
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 100 kN
Cavity: 150 mm - 165 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
60 minute fire rated with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Wide inner lead to suit 125 mm - 140 mm block
Hot dip galvanised
Not suitable for point loads or concrete floors
Loading SWL/UDL Value: 100 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 236 mm |
| Weight: | 26.5 kg Each |
