Birtley HDX90 Cavity Wall Extra Heavy Duty Lintel
Code:
HDX90-C
In stock
/ Each
Extra heavy duty cavity wall lintel manufactured from structural graded steel to EN10025

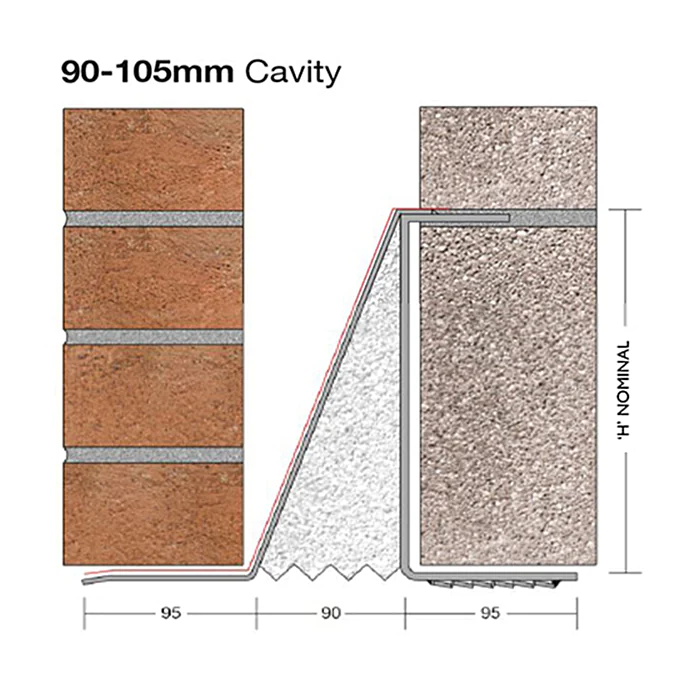

Cavity: 90 mm - 105 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Must have solid, fully jointed blockwork infill to inner leaf
Extra heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Hot dip galvanised
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Loading SWL/UDL Value: 100 kN
Cavity: 90 mm - 105 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Must have solid, fully jointed blockwork infill to inner leaf
Extra heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Hot dip galvanised
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Loading SWL/UDL Value: 100 kN
Extra heavy duty cavity wall lintel manufactured from structural graded steel to EN10025
Cavity: 90 mm - 105 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Must have solid, fully jointed blockwork infill to inner leaf
Extra heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Hot dip galvanised
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Loading SWL/UDL Value: 100 kN
Cavity: 90 mm - 105 mm
Outer Leaf: 100 mm
Inner Leaf: 100 mm
Must have solid, fully jointed blockwork infill to inner leaf
Extra heavy duty cavity wall lintel manufactured from structural grade steel to EN10025
Hot dip galvanised
60 minute fire rating with 2 coat plaster finish
Lack of baseplate and factory fitted expanded polystyrene insulation reduces thermal bridging
Loading SWL/UDL Value: 100 kN
| Pack Size: | Each |
| Length: | 750 mm |
| Height: | 236 mm |
| Weight: | 18.5 kg Each |
