What types of lintel do I need for a cavity wall?

Cavity walls require a cavity lintel that spans both the inner and outer leaf. Common options include the Birtley CB series and the Catnic CG range. For thermal performance, a thermally broken lintel such as the Birtley Supatherm reduces heat loss by up to 75% compared to a standard cavity lintel.

What is a thermally broken lintel?

A thermally broken lintel incorporates an insulating barrier between the inner and outer steel sections, reducing the transfer of cold from outside to inside. The Birtley Supatherm range is a leading example and can reduce heat loss through the lintel by up to 75%.

Do you offer a free lintel take-off service?

Yes. Upload your plans to strukta and our Lintel Department will produce a full lintel schedule free of charge, including sizes, quantities and product recommendations for your build.

What lintel brands does strukta supply?

strukta supplies lintels from Birtley, Catnic, Keystone and IG for steel lintels, and Naylor, Stressline and Supreme Concrete for concrete lintels. All are available for next-day delivery from our dedicated Lintel Yard.

Steel Lintel Selection Guide & Technical Information

Steel Lintel Information

Lintel Selection

1: Wall construction

How is the wall constructed?

Cavity Wall:
- Measure the thickness of the inner leaf, outer leaf and cavity width.
Solid Wall:
- Available for:
  - Single leaf face brick or block external walls
  - 200-215 mm solid brick or block walls
  - 215 mm fair face solid walls with two leaves
Internal Walls:
- Available for:
  - 100 mm and 140 mm load bearing walls
  - 100 mm non-load bearing walls
Timber Frames: Measure the cavity width & outer leaf thickness

2: Opening

How wide is the opening?

Measure:
- The opening that contains either the window or door
The Lintel:
- This should be a minimum of 300 mm wider than the opening (to allow 150 mm end bearing at each end) unless otherwise specified.

3: Loading

How much weight is above the opening?

The imposed load must be assessed and quantified in order to ascertain which load duty is needed.
Loads maybe be direct (i.e. walls, floors) or indirect (i.e. from adjacent parts of the structure). Imposed loads must always be derived in line with PD6697/BS5977 and unfactored when considered with the published guidance of Safe Working Loads (SWL).

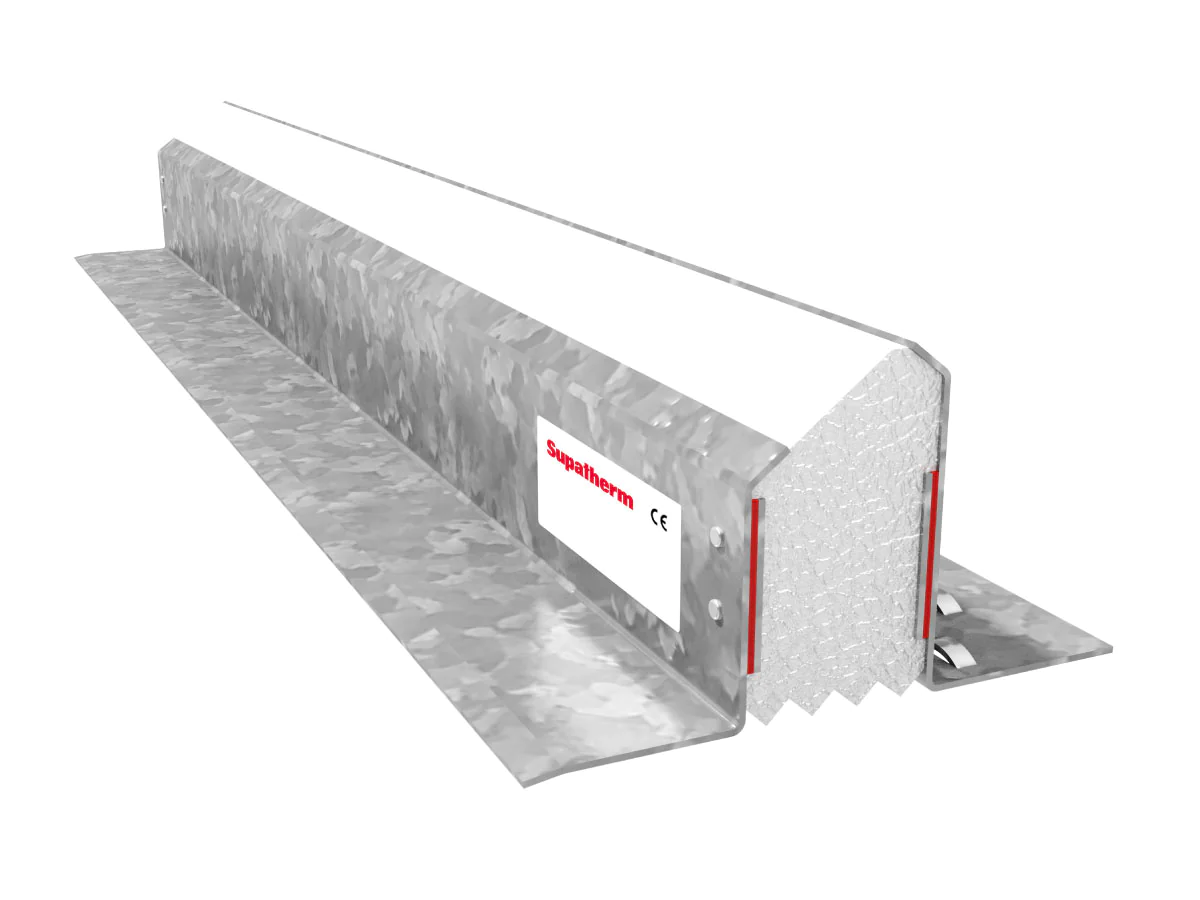

Thermally Broken Lintels

We are proud stockists of the Birtley Supatherm Lintels helping you minimise heat loss by up to 75% and meeting Part L Building Regulations.

Features and Benefits

Save up to 75% heat loss compared with standard cavity wall lintels
All assemblies and parts CE marked to BS EN 845-2
Standard duty, heavy duty, and extra heavy duty
Suited to cavity widths from 90 mm to 150 mm
Lengths from 750 to 3900 mm
Options suited to all types of wall construction and masonry
65UM Hot-Diop Galvanized coating to EN1461 as standard
Avoids propping (associated with single leaf lintels)

The Supatherm range can reduce heat loss by up to 75% in comparison to standard cavity wall lintels and can improve the Dwelling Fabric Energy Efficiency (DFEE) by up go 3% and the Overall Dwelling Emission Rate (DER) by over 1% based on a standard semi-detached, detached or terraced property.

Thermal Bridging Solutions

The Building Regulations: Approved Documents L1A/L2A & SAP

Lintels are regarded as non-repeating thermal bridges with an associated heat loss quantified as a (Psi) value which is measured in Watts/Metre*Kelvin. Lower values represent reduced heat loss through the junction.

Changes in Building Regulations mean that the fabric performance must now hit a Target for Fabric Energy Efficiency (TFEE) alongside the standard Target Emission Rate (TER) for CO2. More focus is now placed on reducing heat loss, a large proportion of which can often be attributed to lintels and other non-repeating thermal bridges.

SAP 2012 adopt a recipe-based process whereby a notional dwelling of identical proportions is allocated set values of linear thermal transmittance from Appendix R. The values combined with additional factors and U Values establishes a target for the dwelling.

* Actual calculated values based on 100mm cavity, full fill insulation. Block λ=0.19.

Product Specification Building Regulations

Material Specification

Birtley lintels are manufactured entirely from structural grade steels (S275JR/S355JR to EN10025-2:2004). The Supergalv range are Hot-Dip Galvanized after fabrication in line with BS EN 1461:2009 providing an unrivalled 65um zinc coating to the surface. The standard coating is suitable for then majority of applications; however special consideration should be made in coastal regions. For example, an extra soffit cover, paint finish (to ISO 12944) or a stainless-steel lintel should be specified in exposed coastal locations. Coastal exposure is deemed to be within 500m of the shoreline in NHBC sites.

Insulation

Expanded polystyrene to BS EN 13163 is used to insulate all external cavity wall lintels (Exc. SX/XHD).

Insulation is HFA, HCFC AND CFC free with an ozone depletion potential of zero. Expansion with pentane also achieves a BREAEAM credit for a global warming potential of zero. The underside of the insulation has been profiled to perform as an efficient plaster key, preventing a cold-bridge occurring at the window head thanks to the absence of a base plate.

Thermal Performance

Linear Thermal Transmittance (Psi) values are calculated by engineers with the requisite qualifications to design Accredited Construction Details for use in SAP 2012. The calculations are generated using Heat 2/3 software, validated to EN 1SO 10211/EN 130 10077-2 and in accordance with BRE documents IP 1/06 and BR497.
